New Product Developments


We have made improvements in design and manufacturing in our products quality and reliability. Thus introducing new products with the new acquired HAAS Automaton Vertical Machining Center (VMC) machine as follows:

1. Fine boring bar with fixed orientation



Fig.1   Adjustment Range is only +/- 0.1 on diameter in each tool
             Max, Cutting Speed :  100 mts. / min.
             Feed :  0.05 mm / rev.

2. Fine OD turning tool with fixed orientation



Fig.2  Adjustment Range is only +/- 0.1 on diameter in each tool
             Least count on dia. :  0.01 mm on diameter


3. Large diameter light weight alloyed aluminum boring bars-



Fig.3  Diameter 310 mm.   Tool weight with BT 40 Shank: 5.5kg

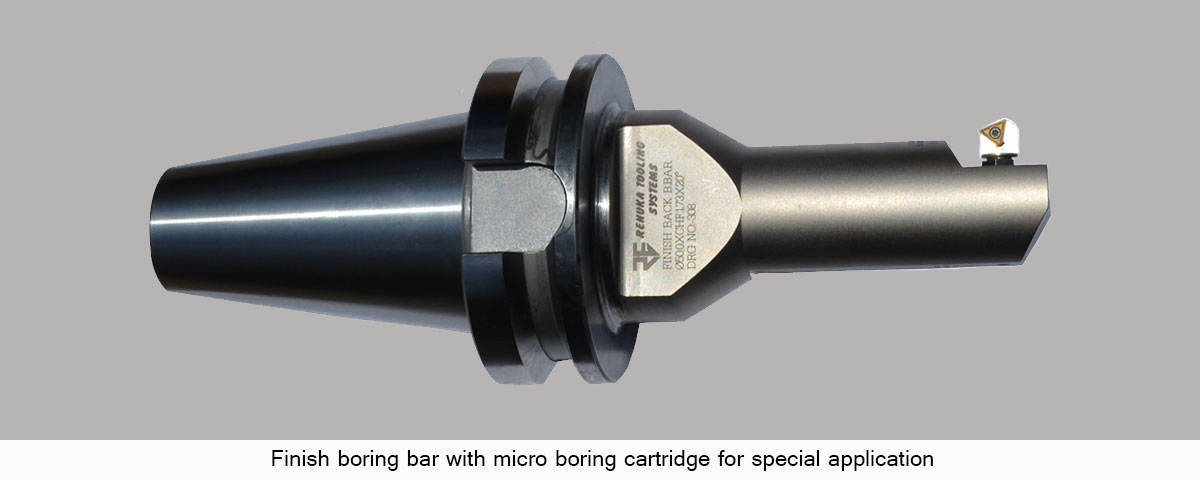

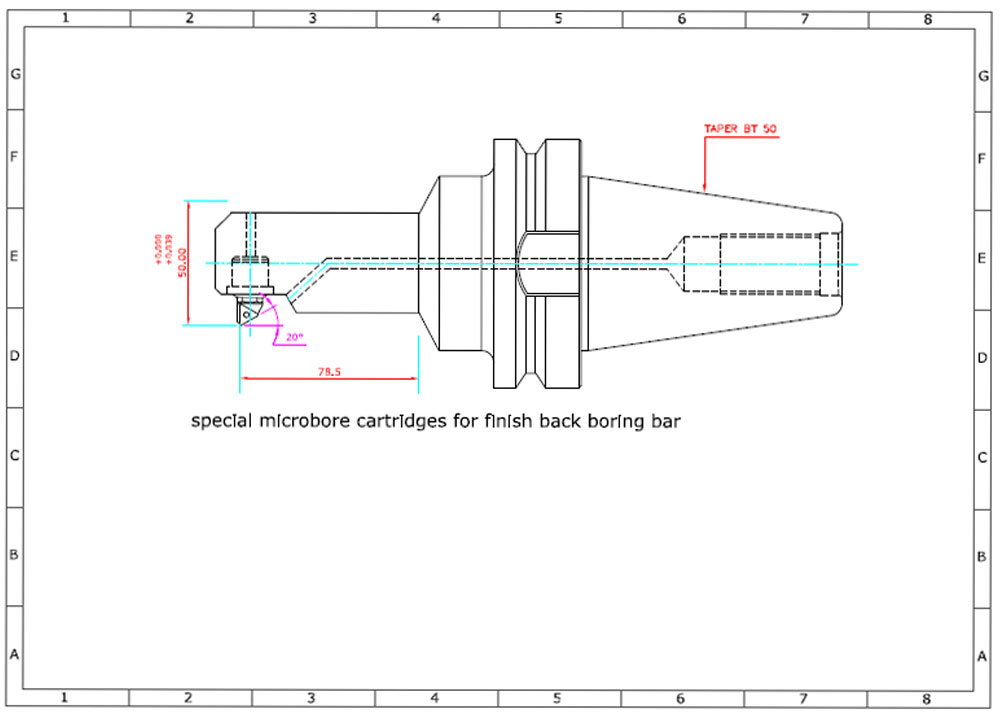

4. Micro boring cartridge for special application.

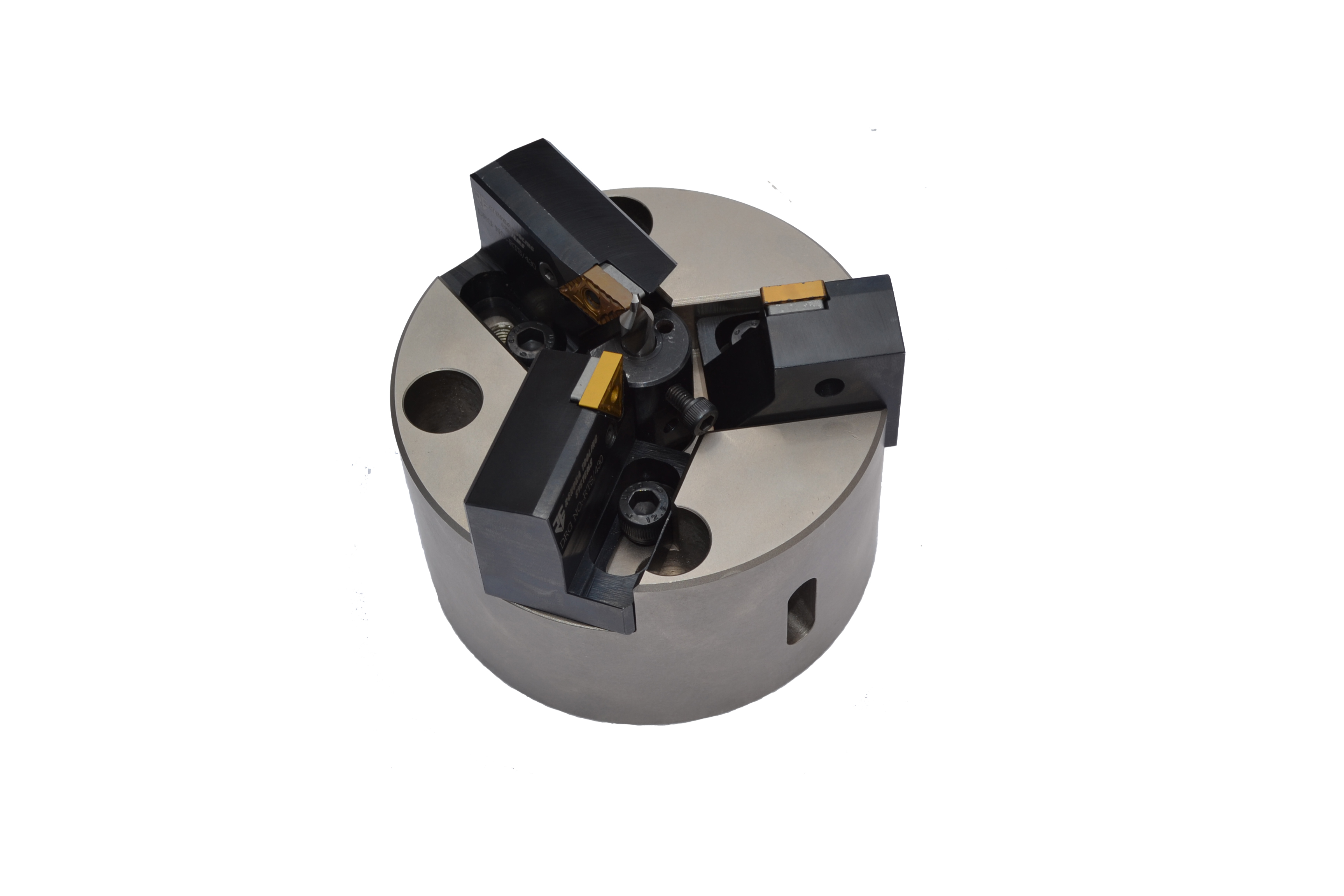

5. Facing & Centering Tool


Facing & Centering tool is used on special purpose machines. This is a plunging operation. This is extensively used in shafts type of Automobile components & Electric Motor Shafts.The machines are normally 2 spindle machines with each spindle plunging in opposite ends of shafts.The Insert shown are DNMG150408 and TNMG160408.

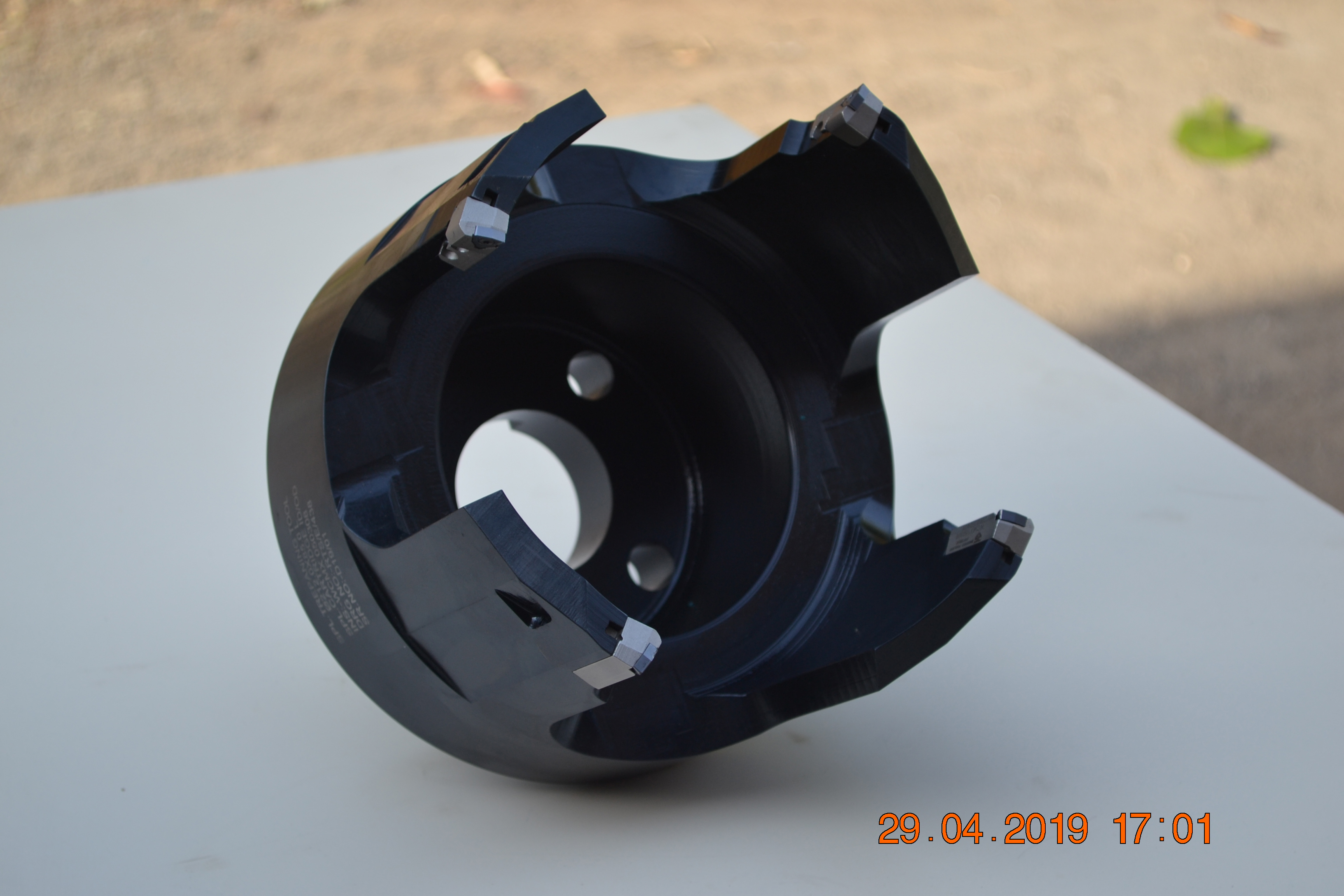

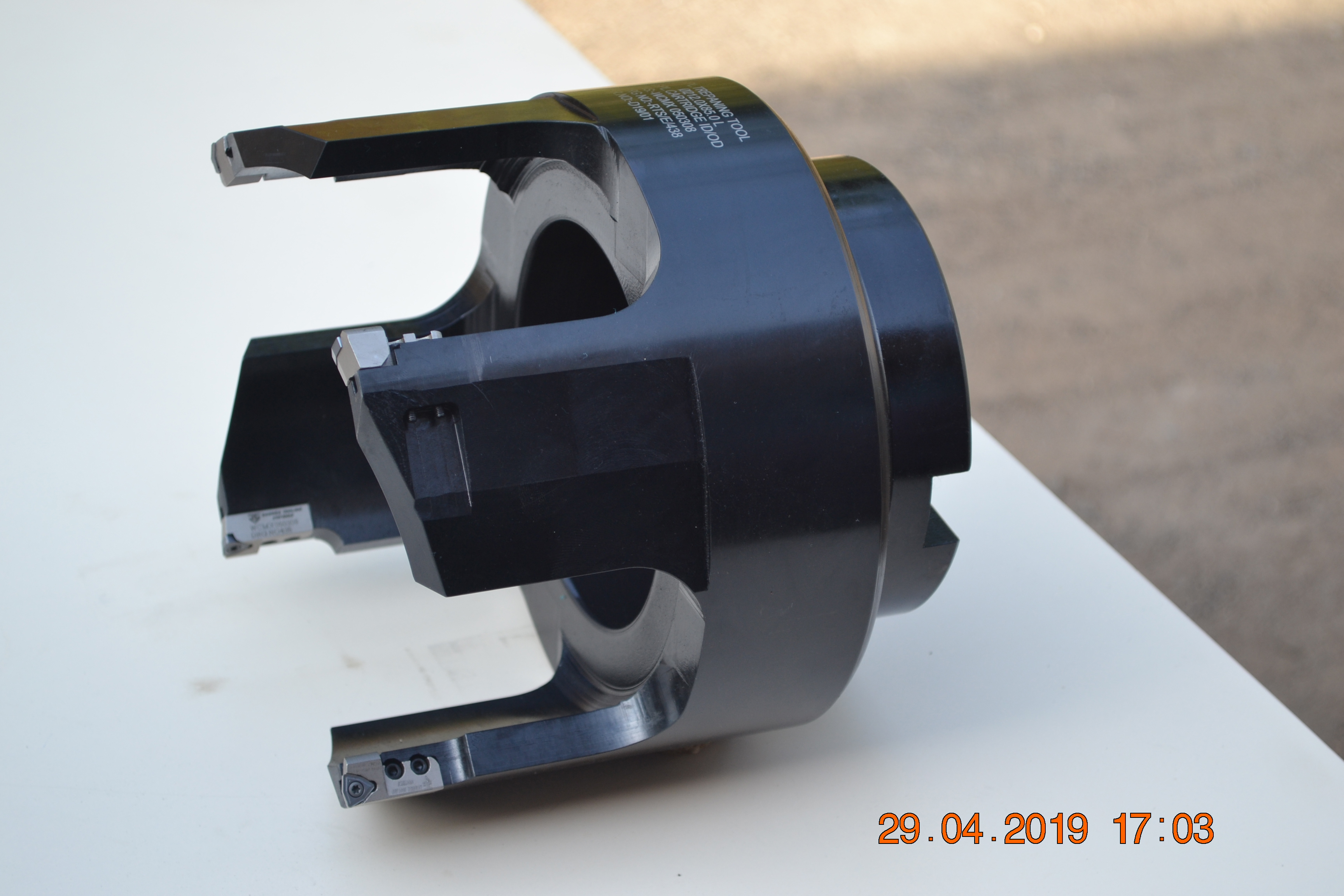

6.Trepanning Tool


As the trepanning tool feeds into the work piece, the trepanning bit or insert cuts a groove the width of the bit and a solid metal core remains. Because only the width of the bit is cut, trepanning is faster and more efficient than drilling in solid with spades or indexable drills.

What is Trepanning?

1. Trepanning is a technique for large diameter holes by cutting only in the annular ring.

2. This is suitable only for through holes.

3. Power required for machining is lower as compared to drilling from solid as only an annular ring is cut.

4. A core is left in the center which may be useful for other applications.

5. Less cutting times required for large diameter holes, for drilling from solid, multiple tools would be required.

This tool used for:-

  • Workpiece material : Stainless Steel
  • Hole diameter         : Ų212.0mm
  • Plate thickness        : 85.0mm
  • Machine                  : Horizontal Boring & Milling Machine (SKODA MACHINE TOOL)
  • Machine power        : 75.0 KW
  • Machine spindle       : ISO 60
  • Spindle diameter     : Ų180.0mm

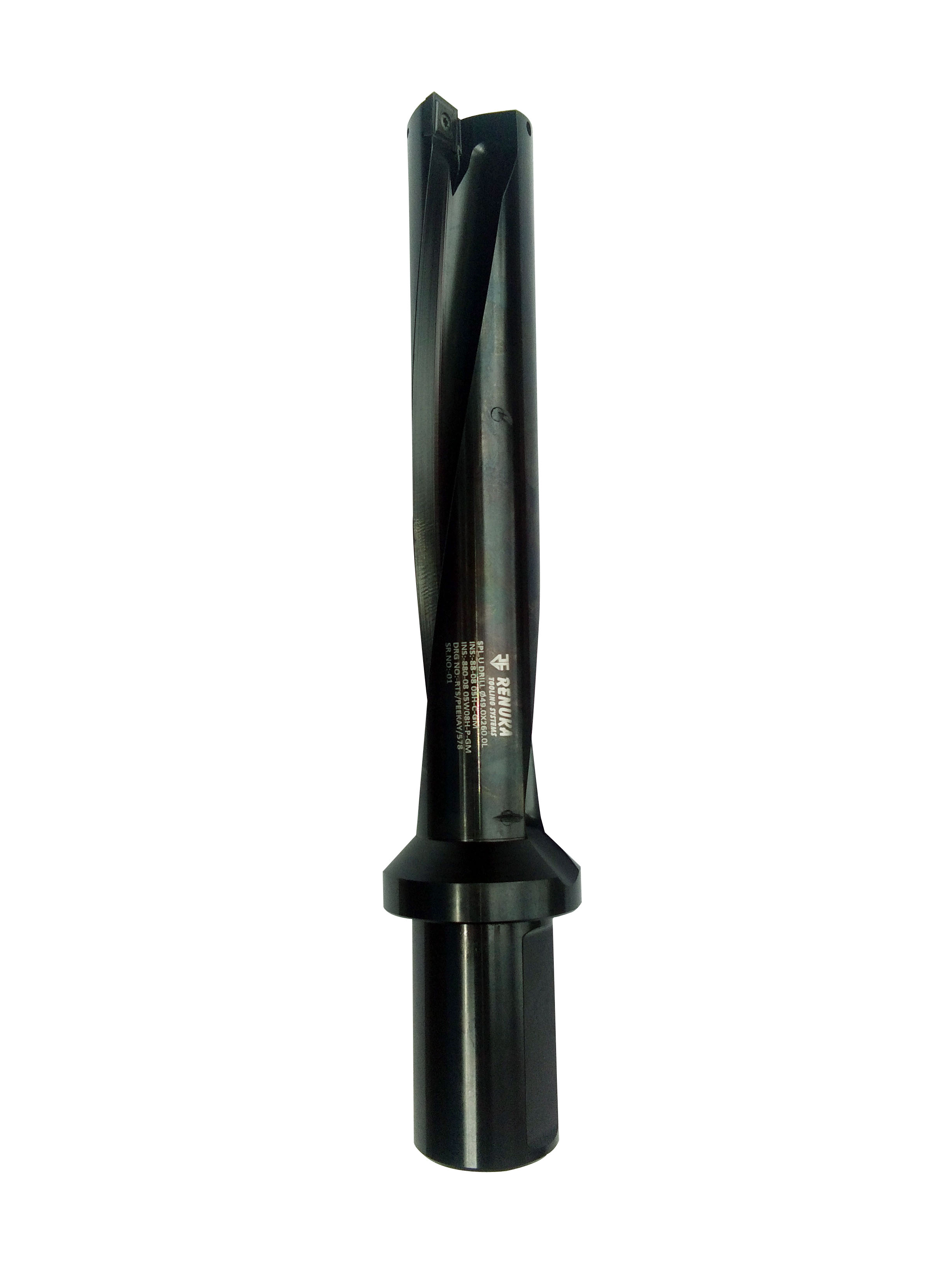

7. Index Able Insert Type Drill (Special vibration controlled tool)

Specifications:-

  • Size                       : 49.0x260 L (l/d =5)
  • Central Insert         : 880-08 05 08H-C-GM
  • Peripheral Insert     : 880-08 05 W08H-P-GM
  • Insert Screw           : 416. 1-834 (M4x11L)
  • Torx Key                : T15 IP (5680 046-02)
