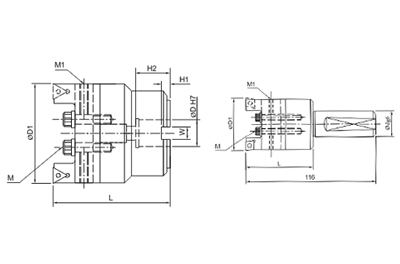

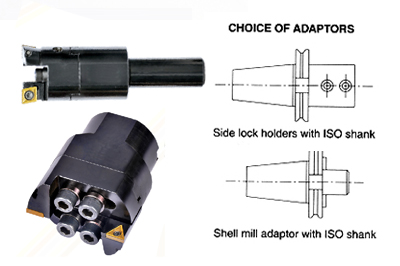

Adjustable twin blade boring bars Roughing And Semi Finishing Boring Tool   Boring Range Ordering No. Ød g6 Ø D H7XH2 L W2 Drive slot WxH1 Insert seat std. 2nos Insert screw Socket head cap screw Radial adjustment grub screw Wt. Kg. 39-44 31003944 straight shank 02Og6 50 34   CCMT 09 T3 08 M3.5X-T15 M5x25 M5x0.8 x 12 0.60 44-55 31004455 50 34 52-65 31005265 50 40 M6x25 M5x0.8 x 18 0.90 64-85 31006485 016x19.0 90 48 8.40x6.0 TCMT 16T3 08 M8x30 M6x 1.0 x 22 1.00 83-103 31083103 022x24.0 100 60 10.40x6.3 M10x45 M8X1.25 x 20 2.0 100-138 31100138 027x25.0 115 66 12.40x7.0 M12x45 M10x1.5 x 35 4.5 138-165 31138165 032X28.0 125 82 16.4x9.0 TCMT 220412 M4.5X-T20 M16x55 M10x1.5 x 45 6.5 165-200 31165200   Note : Single slides are recommended for boring on milling & boring machines for toolroom work. Blades can be ordered separately for replacements.
