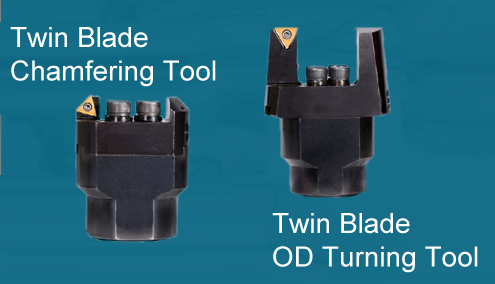

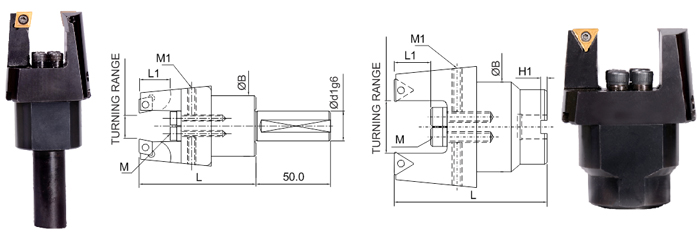

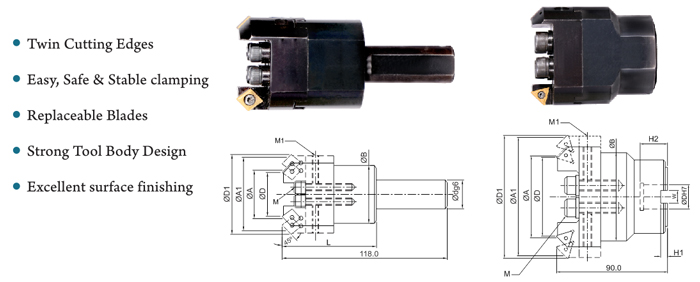

Twin blade chamferingtools   Ordering No Ø D Ø D1 L Range Ø A - ØA1 Ø d g6 Ø DH7 x H2 Ø B W x H1 Insert M M1 330003451 31 55 68 34 - 51 20 40 - CCMT 09T308 M5x35P.No. 51535 M5×15 330004975 46 79 90 49 - 75 16×19 60 8.4×6.0 CCMT 09T308 M8x35P.N0. 81358 M6×18 330073106 70 110 100 73 - 106 22×25 79 10.4×6.3 TCMT16308 M10x40P. No. 101540 M8×25 330104155 101 159 115 104 - 155 27×25 97 12.4×7.0 TCMT16308 M12x45P. N0. 121545 M10x35 330153205 149 211 128 153 - 205 32×30 161 16.4×9.0 TCMT 220412 M16x15P. No. 162050 M10×50   Twin Blade OD Turning Tools   Ordering No Ø Range Ø d g6 Ø DH7 x H2 L L1 Ø B W x H1 Insert M M1 Setting Screw 32001220 12 - 20 20 83 25 35 - CCMT09T308 M5x35L P.No. 51535 M5×15 32001728 17 - 28 20 83 40 - M5x35L P.No. 51535 M5×15 32002538 25 - 38 20 83 48 - M6x35L P.No. 61535 M5×15 32003548 35 - 48 16×19 106 25 60 8.4×6.0 TCMT16T308 M8x35L P.No. 81535 M6×25 32004666 46 - 66 22×24 120 79 10.0×6.3 M10x40L P. No. 101540 M8×25 32063100 63 - 100 27×25 158 50 97 12.4×7.0 TCMT16T308 M12x50L p.No. 121540 M10×25 32097125 97 - 125 32×28 164 135 16.4×9.0 M16x50L P.No. 162050 M10×40 32120155 120 - 155 32×28 164 161 16.4×9.0 M16x50L P.No. 162050 M10×40 32154190 154 - 190 32×28 164 196 16.4×9.0 TCMT220412 M16x50L P.No. 162050 M10×40
