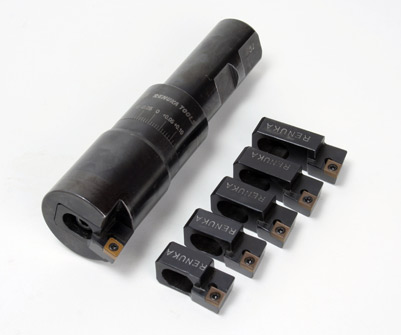

| Boring head for prototype, die & mould machining | |||||||||||||||||||||||||||||||||
|
Range :

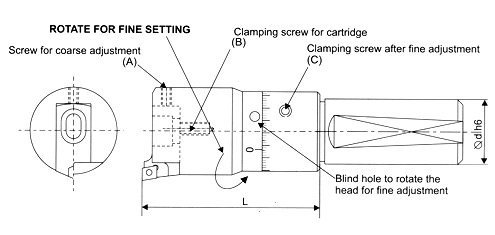

40 to 65 mm. & 65 to 90 mm Fine Adjustment Range : 0.1 mm. Least Count : 0.1 mm. 0.01mm. on dia Range for each cartridge : 5mm. on dia. Uses : Die & moulds manufacturing, prototype & pilot batch manufacturing. Dies & moulds have bores for guide bushes, guide pins, ejector pins, sprue bushes etc. which have close tolerances. These bores are few in numbers and need a tool with wide & precision adjustment range. Prototype manufacturing needs versatile tools to cover a large range and precision tools to manufacture to component bores to close tolerances. Similar needs are also for pilot batch manufacturing. This boring head is suitable for use on precision high speed boring machines, machining centers and special purpose machines. How to adjust : With this tool, we can have near to size adjustments on cartridge screw (A) and fine liustment on the circumference. |
|||||||||||||||||||||||||||||||||
|
 |
||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||
