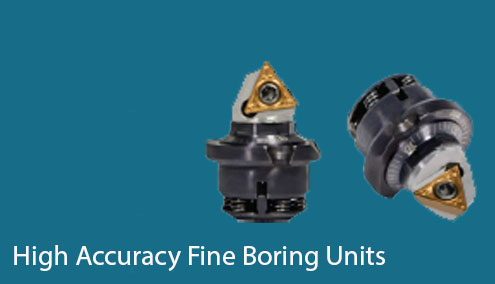

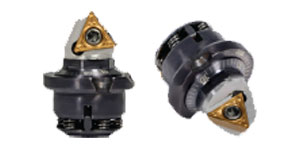

High accuracy fine boring units

High Accuracy

The adjustment is made from the front by turning the adjusting nut. The adjusting nut has a scale where the value of each division is 0.002 on diameter. For smallest size, all units have vernier scale on the collar.

Adjustment Range : $0.4 mm. on diameter
Least Count on Dia. : 0.002 mm.

Robust design for close tolerances. Precision machining has been ensured in every stage of manufacturing.

Size consistency in boring and capable of machiningto close tolerances.

The units are self locking i.e., there is no need for unlocking before or locking after setting.

Cost Effective & Affordable
Solutions for
Precision Boring

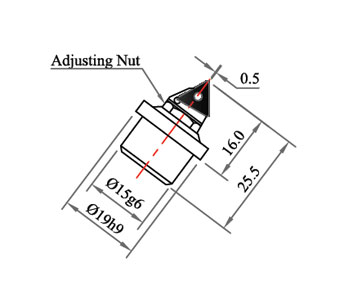

Min. boring dia.

Unit Part No.

Insert

Insert Screw

Spanner

Torx key

Unit Mounting screws (2 Nos.)

:30 mm.

:61030-A

:TPGT /TPGA / TPGX - 090204

:M2.5 x 7L X T8 (Part No - 21480800)

:Part No - 710000

:T8 (Part No - 21480866)

:M3 x 6L (Part No - 7883203)

Min. boring dia.

Unit Part No.

Insert

Insert Screw

Spanner

Torx key

Unit Mounting screws (2 Nos.)

: 26 mm.

:61O26-A

:TCGT 06T 104

:M2.0 x 4.8L x T6 (Part No - 7729113)

:Part No - 710000

:T6 (Part No - 21480059)

:M3 x 6L (Part No - 7883203)

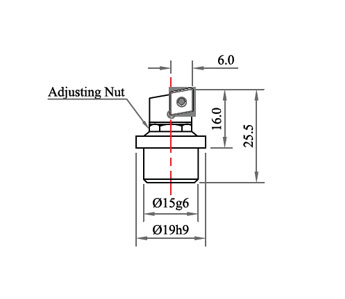

Min. boring dia.

Unit Part No.

Insert

Insert Screw

Spanner

Torx key

Unit Mounting screws (2 Nos.)

: 34 mm.

:61O36-S

:CCGT 060304

:M25 x 7L x T8 (Part No - 21480800)

:Part No - 710000

:T8 (Part No - 21480866)

:M3 x 6L (Part No - 7883203)

Note -

1. Tools for inserts other than above can also be provided against orders.
