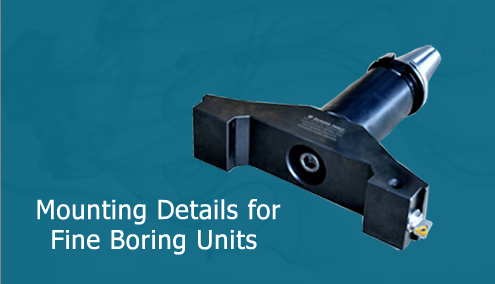

ROUGHING AND SEMI FINISHING TOOLS FINISHING TOOLS WITH HIGH ACCURACY • Burr bits • Chamfering tools • Adjustable diameter boring bars • Adjustable twin blade boring bars • Spot face cutters • Twin blade chamfering tools • ISO cartridges screw clamp design • Tailor made tools • Finish boring bars for small bores • Fine boring units • Dynamically balanced finish boring bars • Large dia. fine boring bars • Mounting details for fine boring units • Boring head • High accuracy fine boring bars • High accuracy fine boring units

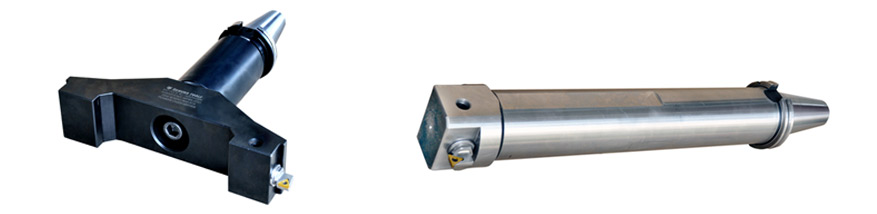

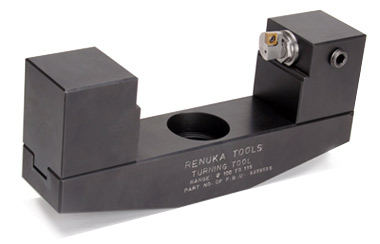

Mounting details for special boring bars with fine boring units   Special Finish Turning Tool           Min. Boring Dia. Part No. Ø dH8 L L2 L4 F TAP C Insert Adjustment range on Dia. 40 6104044 10 22.5 21.5 12.5 9 M6x1.0 1.2 CCGT060204 4 mm 45 6104551 10 24 27 13 9 M6x 1.0 1.2 CCGT060204 6 mm 65 6166575 16 35 39 17 12 M10x1.5 1.2 CCGT060204 10 mm 85 6258595 25 47 57 19 16.5 M16x2.0 2.0 TCGT110204 10 mm   Special Finish Boring Bar for Big Size Bore Special Long length Finish Boring bar
