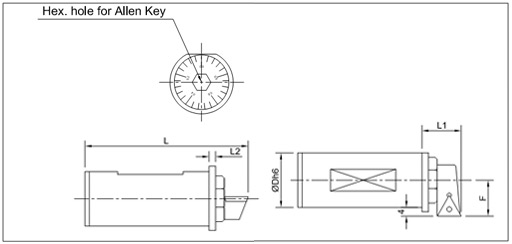

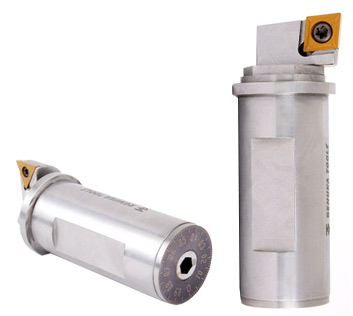

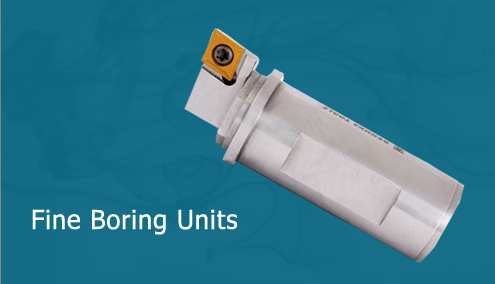

Fine boring units • Maximum accuracy • Easy mounting • Suitable for machining centres & special purpose machines.   Advantage : Fast, Accurate tool Setting : Simply using Allen Key. Maximum Accuracy : Tool is adjusted when clamped. Anti backlash design. Easy mounting : Only requirements : Close tolerance bore & Tapped Hole for Clamping. Minimum weakening of boring bar : Due to small dimension of cartridge. Suitable for machining centres & Special Purpose Machines.         Ordering No. for boring unit complete with boring tool ordering No. for boring tool Min Boring Dia. Adj. range on Dia. Ø dh6 L L1 L2 Inserts Size Insert clamping screw Torx Key Least Count on Radius                 6104044 601576 40 4 mm 10 33.5 11.5 9.0 CCGT060204 M2.5 X 4.8 T8 0.02 mm 6104551 601576 45 6 mm 10 42.5 15  9.0 CCGT060204 M2.5 X 4.8 T8 0.02 mm 6166575 601856 65 10 mm 16 56 17 12.0 CCGT060204 M2.5 X 6 T8 0.01 mm 6258595 6011411 85 10 mm 25 76 19 16.5 TCGT110204 M2.5 X 6 T8 0.005 mm
