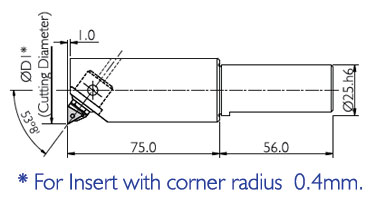

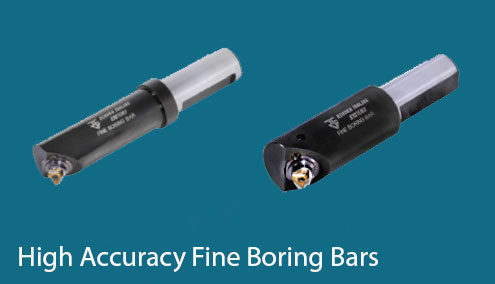

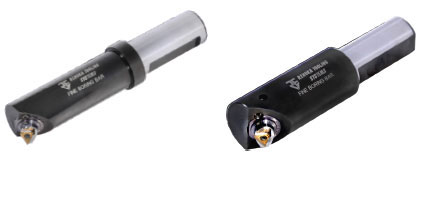

High accuracy fine boring bars

Dynamically Balanced

Adjustment Range : $0.4 mm. on diameter

Sizes up to 32.5

Ordering No. (D1)Min.Dia
710300 Ø30.0
710305 Ø30.5
710310 Ø31.0
710315 Ø31.5
710320 Ø32.0
710325 Ø32.5

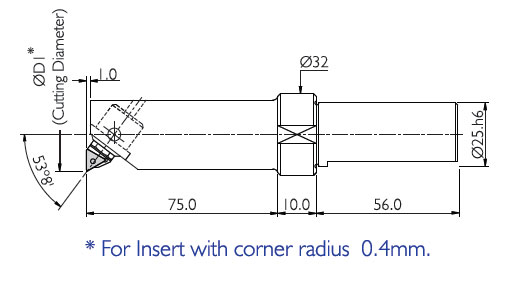

Sizes up to Ø40.5

Ordering No. (D1)Min.Dia
710330 Ø33.0
710335 Ø33.5
710340 Ø34.0
710345 Ø34.5
710350 Ø35.0
710355 Ø35.5
710360 Ø36.0
710365 Ø36.5
710370 Ø37.0
710375 Ø37.5
710380 Ø38.0
710385 Ø38.5
710390 Ø39.0
710395 Ø39.5
710400 Ø40.0
710405 Ø40.5

Mounting dimensions for Fine boring unit
Precautions

  • Not to be used for bottoming.

  • Do not use beyond recommended
    adjustment range that is ± 0.4 mm.
    on diameter.

Note -

1. Tools for inserts other than above can also be provided against orders. 2. Through coolant hole is provided on request.

3. Longer length boring tools are made against orders. 4. Different shank diameters & styles are made against orders.
