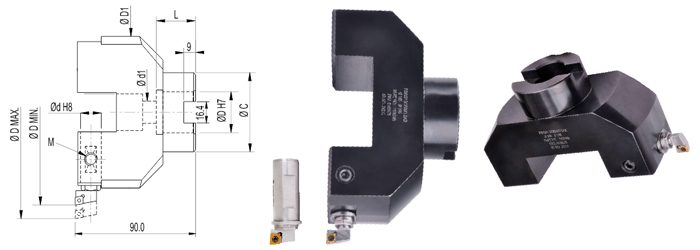

Large dia. fine boring bars   Fine Boring unit mounted with boring bar     Ordering No. Part No. for Fine FNU ØD Min. ØD Max. Adj. Range on Dia. Ø DH7 L Ø C Ø d 1 Ø d H8 Ø D1 M Insert LC on Redius Wt. in KG 7100145 61665 145 155 10 32 25 58 17 16 116 M10 CCGT060204 0.010 2.9 7100155 61665 155 165 10 32 25 58 17 16 126 M10 CCGT060204 0.010 3.0 7100165 61665 165 175 10 32 25 58 17 16 136 M10 CCGT060204 0.010 3.2 7100175 61665 175 185 10 32 25 58 17 16 146 M10 CCGT060204 0.010 3.4 7100185 61665 185 195 10 32 25 58 17 16 156 M10 CCGT060204 0.010 3.6 7100195 62585 195 205 10 40 29 70 21 25 164 M16 TCGT110204 0.005 4.5         Scope of supply : includes fine borning unit as indicated above but without inserts.
